FBS rotary screw blowers: Pure efficiency

The FBS rotary screw blower from Kaeser represents the next milestone in the development of oil-free compression blower technology, designed especially with water industry applications in mind.

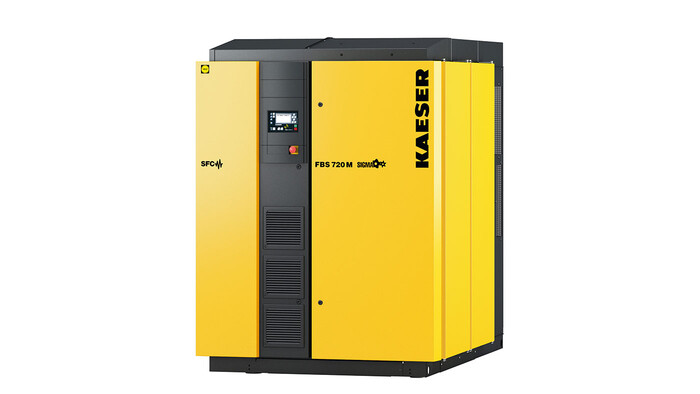

FBS 鼓风机
FBS series rotary screw blowers are true standouts on account of their high levels of efficiency and compact design.

With a flow rate of 18 to 72 m³/min and pressure differentials from 0.3 to 1.1 bar, as well as a selection of motors ranging from 45 to 110 kW, the innovative FBS continues the success story of its smaller sibling, the EBS, whilst setting new standards in terms of energy efficiency, space-saving design and automation.

The SFC version is equipped with a frequency converter and a synchronous reluctance motor – a slip-free design that combines all the advantages of high-efficiency permanent-magnet motors with those of robust, service-friendly asynchronous motors. Thanks to variable speed control, the flow rate can be adjusted as required and a control range of 1:4 is achieved, allowing exceptionally dynamic operation.

The fixed speed STC version is equipped with an energy-saving IE4 Super Premium Efficiency motor, which reduces energy consumption and therefore costs, making the STC version more efficient than ever before.

On both versions, power transmission from the motor to the airend takes place via loss-free and maintenance-free gearing, which results in an improvement of up to 7% in specific package input power as compared to the previous model. The complete machine achieves an efficiency range that represents the pinnacle of performance for this particular segment. In order to ensure that the specified performance figures are translated into reality, Kaeser guarantees performance in accordance with the strict tolerances of the ISO 1217-C/E standard.

Furthermore, efficiency remains constant across the entire control range and flow rate is virtually unaffected by pressure fluctuations. This allows the blowers to be precisely regulated and adjusted at all times via the master control system, achieving even greater energy savings and ensuring seamless integration with other control technologies.

Despite the compact dimensions of the FBS, Kaeser has succeeded in dispensing with the requirement for maintenance access from one side, thereby permitting side-by-side installation. This results in considerable space savings, particularly when operating multiple blower systems.

FBS rotary screw blowers are delivered ready for immediate connection, including controller and frequency converter or star-delta starter. All units are CE and EMC-certified, thereby minimising the planning, construction, certification, documentation and commissioning costs for planners, operators and plant manufacturers. Last but not least, highly effective sound and pulsation damping ensure exceptionally quiet operation.

24. 03. 22 , 免费出版且欢迎拷贝
